RAYSAN PFA三通（两端省空间）RTS2A
特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

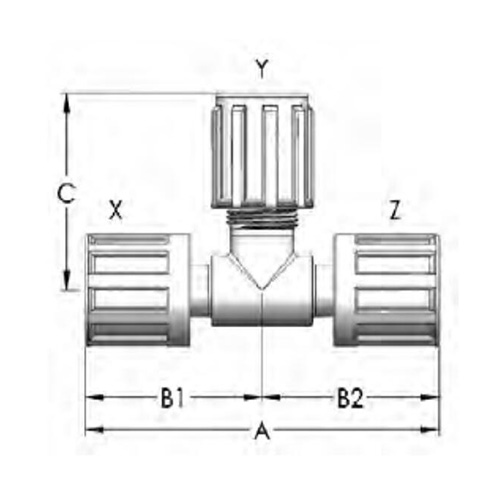

Part No.
X (省空间)
Y
Z (省空间)
通径
A
B1
B2
C
(inch)
(inch)
(inch)
(mm)
(mm)
(mm)
(mm)
(mm)
RTS2A04S0404S1
1/4"
1/4"
1/4"
3.81mm
83.31mm
41.66mm
41.66mm
42.16mm
RTS2A06S0406S1
3/8"
1/4"
3/8"
3.81mm
87.88mm
43.94mm
43.94mm
42.16mm
RTS2A06S0606S1
3/8"
3/8"
3/8"
6.35mm
87.88mm
43.94mm
43.94mm
44.70mm
RTS2A06S0806S1
3/8"
1/2"
3/8"
6.35mm
87.88mm
43.94mm
43.94mm
47.50mm
RTS2A08S0408S1
1/2"
1/4"
1/2"
3.81mm
93.47mm
46.74mm
46.74mm
42.16mm
RTS2A08S0808S1
1/2"
1/2"
1/2"
9.65mm
93.47mm
46.74mm
46.74mm
47.50mm
RTS2A08S1208S1
1/2"
3/4"
1/2"
9.65mm
93.47mm
46.74mm
46.74mm
56.39mm
RTS2A12S0412S1
3/4"
1/4"
3/4"
3.81mm
108.20mm
54.10mm
54.10mm
42.16mm
RTS2A12S0612S1
3/4"
3/8"
3/4"
6.35mm
108.20mm
54.10mm
54.10mm
44.70mm
RTS2A12S0812S1
3/4"
1/2"
3/4"
9.65mm
108.20mm
54.10mm
54.10mm
47.50mm
RTS2A12S1212S1
3/4"
3/4"
3/4"
16.00mm
108.20mm
54.10mm
54.10mm
68.58mm
RTS2A16S0616S1
1"
3/8"
1"
6.35mm
139.19mm
69.60mm
69.60mm
54.10mm
RTS2A16S0816S1
1"
1/2"
1"
9.65mm
139.19mm
69.60mm
69.60mm
57.40mm
RTS2A16S1216S1
1"
3/4"
1"
16.00mm
139.19mm
69.60mm
69.60mm
56.13mm
RTS2A16S1616S1
1"
1"
1"
22.35mm
139.19mm
69.60mm
69.60mm
68.58mm
