PP卡套接头特性： PP（聚丙烯）为惰性材质，在低于80℃的环境中可耐多数有机溶剂，能耐绝大多数弱酸和弱碱腐蚀（尤其是盐酸和磷酸）。常被用于超...
PP卡套接头特性： PP（聚丙烯）为惰性材质，在低于80℃的环境中可耐多数有机溶剂，能耐绝大多数弱酸和弱碱腐蚀（尤其是盐酸和磷酸）。常被用于超...

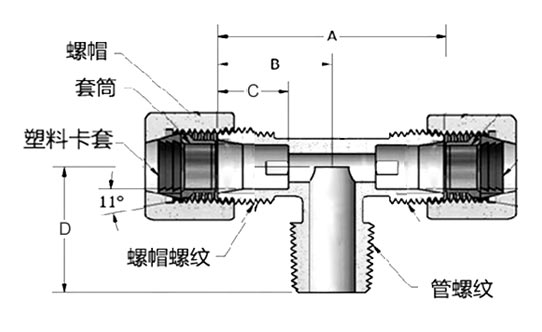

| 编码 | 口径（inch) |
螺帽 螺纹 |
A(mm) ±0.4 |
B(mm) ±0.4 |
C(mm) ±0.4 |
D(mm) ±0.4 |
| PFMBT04022 | 1/4"*1/8"NPT*1/4" | 7/16"-20 | 36.91mm | 18.65mm | 11.91mm | 19.05mm |
| PFMBT04042 | 1/4"*1/4"NPT*1/4" | 7/16"-20 | 37.31mm | 18.65mm | 11.91mm | 23.42mm |
| PFMBT05042 | 5/16"*1/4"NPT*5/16" | 1/2"-20 | 40.88mm | 20.64mm | 12.30mm | 25.00mm |
| PFMBT06042 | 3/8"*1/4"NPT*3/8" | 5/8"-20 | 49.21mm | 24.61mm | 15.08mm | 26.99mm |
| PFMBT06062 | 3/8"*3/8"NPT*3/8" | 5/8"-20 | 48.42mm | 24.21mm | 15.08mm | 27.78mm |
| PFMBT08062 | 1/2"*3/8"NPT*1/2" | 3/4"-20 | 55.96mm | 28.18mm | 17.46mm | 29.37mm |
| PFMBT08082 | 1/2"*1/2"NPT*1/2" | 3/4"-20 | 56.36mm | 28.58mm | 17.46mm | 33.73mm |
| PFMBT10082 | 5/8"*1/2"NPT*5/8" | 7/8"-20 | 64.29mm | 31.75mm | 17.86mm | 36.51mm |
| PFMBT12082 | 3/4"*1/2"NPT*3/4" | 1-1/16"-20 | 78.98mm | 39.69mm | 20.64mm | 41.67mm |
| PFMBT12122 | 3/4"*3/4NPT*3/4" | 1-1/16"-20 | 78.98mm | 39.69mm | 20.64mm | 41.67mm |
| PFMBT14122 | 7/8"*3/4"NPT*7/8" | 1-3/16"-16 | 78.58mm | 39.29mm | 22.23mm | 41.28mm |
