RAYSAN PFA三通(一端省空间)RTS1A


特性:专业应用于高纯度的半导体行业,也适合于超纯水或腐蚀性化学物质,在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性,并具有良好的机械特征,抗磨损。
材质:PFA
接口形式:扩口连接
最高使用温度:200℃
最高使用压力:0.7MPa
传送介质:液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

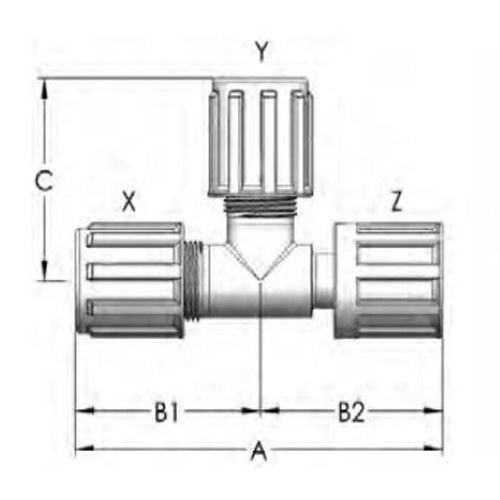

Part No. X Y Z (省空间) 通径 A B1 B2 C
(inch) (inch) (inch) (mm) (mm) (mm) (mm) (mm)
RTS1A040404S1 1/4" 1/4" 1/4" 3.81mm 83.82mm 42.16mm 41.66mm 42.16mm
RTS1A040808S1 1/4" 1/2" 1/2" 3.81mm 88.90mm 42.16mm 46.74mm 47.50mm
RTS1A060406S1 3/8" 1/4" 3/8" 3.81mm 88.65mm 44.70mm 43.94mm 42.16mm
RTS1A060606S1 3/8" 3/8" 3/8" 6.35mm 88.65mm 44.70mm 43.94mm 44.70mm
RTS1A060608S1 3/8" 3/8" 1/2" 6.35mm 91.44mm 44.70mm 46.74mm 44.70mm
RTS1A060808S1 3/8" 1/2" 1/2" 6.35mm 91.44mm 44.70mm 46.74mm 47.50mm
RTS1A061212S1 3/8" 3/4" 3/4" 6.35mm 98.81mm 44.70mm 54.10mm 56.39mm
RTS1A080408S1 1/2" 1/4" 1/2" 3.81mm 94.23mm 47.50mm 46.74mm 42.16mm
RTS1A080606S1 1/2" 3/8" 3/8" 6.35mm 91.44mm 47.50mm 43.94mm 44.70mm
RTS1A080608S1 1/2" 3/8" 1/2" 6.35mm 94.23mm 47.50mm 46.74mm 44.70mm
RTS1A080806S1 1/2" 1/2" 3/8" 6.35mm 91.44mm 47.50mm 43.94mm 47.50mm
RTS1A080808S1 1/2" 1/2" 1/2" 9.65mm 94.23mm 47.50mm 43.94mm 47.50mm
RTS1A080812S1 1/2" 1/2" 3/4" 9.65mm 101.60mm 47.50mm 54.10mm 47.50mm
RTS1A120412S1 3/4" 1/4" 3/4" 3.81mm 110.49mm 56.39mm 54.10mm 42.16mm
RTS1A120612S1 3/4" 3/8" 3/4" 6.35mm 110.49mm 56.39mm 54.10mm 44.70mm
RTS1A120812S1 3/4" 1/2" 3/4" 9.65mm 110.49mm 56.39mm 54.10mm 47.50mm
RTS1A121208S1 3/4" 3/4" 1/2" 9.65mm 103.12mm 56.39mm 46.74mm 56.39mm
RTS1A121212S1 3/4" 3/4" 3/4" 16.00mm 110.49mm 56.39mm 54.10mm 56.39mm
RTS1A160416S1 1" 1/4" 1" 16.00mm 138.18mm 68.58mm 69.60mm 51.31mm
RTS1A160616S1 1" 3/8" 1" 6.35mm 138.18mm 68.58mm 69.60mm 54.10mm
RTS1A160816S1 1" 1/2" 1" 9.65mm 138.18mm 68.58mm 69.60mm 57.40mm
RTS1A161216S1 1" 3/4" 1" 16.00mm 138.18mm 68.58mm 69.60mm 56.39mm
RTS1A161612S1 1" 1" 3/4" 16.00mm 125.48mm 68.58mm 69.60mm 68.58mm
RTS1A161616S1 1" 1" 1" 22.35mm 138.18mm 68.58mm 69.60mm 68.58mm
