上海存简流体技术有限公司
氟硅胶钢丝硅胶管 FSQ

氟硅胶钢丝硅胶管 FSQ

  • 铂金硫化4层网布硅胶管 SP

    铂金硫化4层网布硅胶管 SP

    应用:食品、饮料、饮用水、化妆品、制药等高洁净行业 结构:铂金硫化硅胶管,内置四层聚酯纤维布增强 温度范围:-60°C 到+200...

  • 氟橡胶钢丝硅胶管 FKSQ

    氟橡胶钢丝硅胶管 FKSQ

    氟橡胶钢丝硅胶管 FKSQ应用:内部含有FKM层,可以满足98%化学品、溶剂和腐蚀性液体的输送可用。如抽吸食用油,碱性化妆品面...

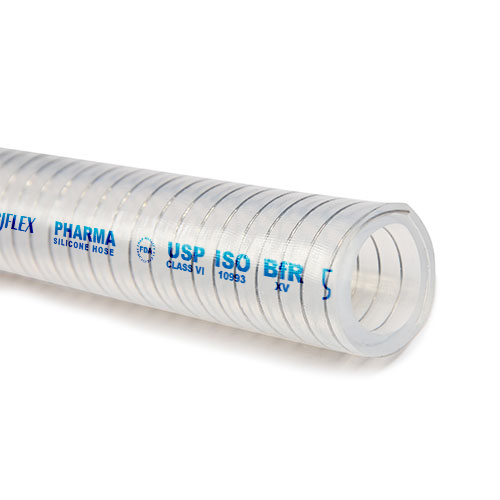

氟硅胶钢丝硅胶管 FSQ

应用:可用于带有酸性或碱性物质的高低温食品、化妆品、化工、制药行业和生物工程用的液体或半液体流体,如抽吸酸奶乳制品,食用油,碱性化妆品面膜,洗衣液,或带有碱性或酸性的生物药物等。

结构:内层氟硅胶,内置四层聚酯纤维布及不锈钢丝增强,外层铂金硫化硅胶
温度范围:-60°C 到+180°C
颜色:标准为半透明,可定制其他颜色
优点:
- 内壁光滑,耐腐蚀性好,可输送酸碱物质;
- 无臭、无味,完全无毒,不含任何塑化剂和添加剂成分;
- 具有良好的气密性,不易渗透物质,
- 耐油性好,可以输送各种食用油,香精等。
- 耐磨性好,可以用于输送高压干冰,冰水混合物。
- 外表抗粘着性,可耐真空,可进行CIP及SIP清洗
符合认证:FDA, BFR, USDA
长度:标准长度为6米或10米

Application: It can be used in high and low temperature food, cosmetics, chemical, pharmaceutical and bioengineering with acidic or alkaline substances, such as suction of yogurt dairy products, edible oil, alkaline cosmetic mask, laundry fluid, or biological drugs with alkaline or acidic substances, etc.
Construction: Inner tube fluorosilicone, reinforced with four layers of polyester fiber and stainless steel wire, outer tube platinum cured silicone.
Temp. Range: -60°C and 180°C
Color: Translucent; other colors can be customized.
Advantages:
1- Smooth inner wall with good corrosion resistance, can be used to transport acid and alkali medium;
2- Odorless, tasteless, completely non-toxic, without any plasticizers and additives;
3- It has good air tightness and is not easy to penetrate substances,
4- Oil resistance, can be used to transport various edible oils, flavors, etc.
5- Abrasion resistance, can be used to transport high-pressure dry ice, ice water mixture.
6- Appearance anti-adhesion, vacuum-resistant, CIP and SIP cleanable.
Certification: FDA, BFR, USDA
Standard length: 6m or 10m

编码 内径 外径 弯曲半径 工作压力 爆破压力 真空度
in. mm mm mm bar bar bar
FSQ006 1/4" 6.4 17.4 120 19.5 58.5 0.91
FSQ008 5/16" 7.9 19.0 130 18 54 0.91
FSQ010 3/8" 9.5 21.0 140 16.5 49.5 0.91
FSQ013 1/2" 12.7 24.0 150 15 45 0.91
FSQ016 5/8" 15.9 27.0 160 13.5 40.5 0.91
FSQ019 3/4" 19 30.0 170 12.5 37.5 0.91
FSQ022 7/8" 22 33.0 180 12 36 0.91
FSQ025 1" 25.4 36.0 190 11 33 0.91
FSQ032 1-1/4" 32 43.0 200 9.5 28.5 0.91
FSQ038 1-1/2" 38 49.0 210 8 24 0.91
FSQ045 1-3/4" 45 56.0 230 7.5 22.5 0.91
FSQ051 2" 50.8 62.0 250 6.5 19.5 0.91
FSQ064 2-1/2" 63.5 74.0 360 6 18 0.91
FSQ076 3" 76.2 88.0 500 4.5 13.5 0.91
FSQ089 3-1/2" 89 102.0 900 3.5 10.5 0.91
FSQ102 4" 102 115.0 1200 3 9 0.91
FSQ127 5" 127 141.0 - 2.5 7.5 0.91
FSQ152 6" 152 166.0 - 2 6 0.91


我们24小时内会与您联系
